Hardware Write-up
I did an exhaustive write up of my lab a few months ago and it died. This will be a trickle attempt to get it back in place. It was useful for referencing my hardware and showing how I have things setup. We do plan on doing it again. Especially cause we know at 9:00 PM tonight the server this is on will be flashed to a backup stockpile 🤣
Notes to self:
Todo ~ Import all hardware from ebay. Skipped most hard drive purchases on ebay (minus the ssds). Need to grab everything on Amazon. Try and summarize most of what is in the lab currently from offer up and craiglist.
Than obviously at some point will start to show how stuff is set up!
Hardware:
|
|
Part Name | Purchase Cost / Date | Purchase Method / Photos / Notes |
The Rack Itself |
Compaq 42U (9000?) | ||
|
|
|||
UPS |
EEATON NETWORK M2 5PX3000RT2U UPS, 3000VA Rackmount, Good Condition, Tested. |
$352.30 / Dec 02, 2024 | |
|
~ (UPS Rails) |

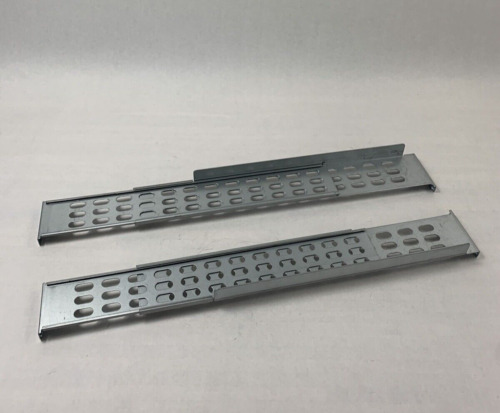

APC SC 870-1250B L / SC 870-1251B R Server Rackmount Sliding Rail Kit |
$44.03 / Dec 04, 2024 |
|
|
|
|||
Avocado |
|||
|
CPU: |
2 x E5_2680 v3 | "..." | "..." ~ Came with Avocado chassis. |
|
GPU: |
Nvidia RTX A2000 12GB GPU Video Graphics NVIDIA Warranty 03/2025 |
$440.40 / Jul 01, 2024 |
|
|
NIC |
SILICOM PE310G4SPI9L-XR-CX3 QUAD PORT 10GB SFP+ NETWORK ADAPTER |
$40.78 / Nov 09, 2024 |
|
|
~ (NIC Bracket) |
$4.35 / Nov 13, 2024 |
|
|
|
SSD (Ceph VM Data Pool): |
$157.39 / Jun 20, 2024 |
|
|
|
Chassis: |
SuperChassis 826BE1C-R920LPB |
$630.87 / May 10, 2024 |
2U 12 Bay TruNas SAS3 12gbps Server Xeon 24 core 128GB w/SSD Boot 2x 920SQ PS
|
|
PSU: |
2 x Supermicro PWS-920P-SQ | "..." | "..." ~ Came with Avocado chassis. |
Bamboo |
|||
|
CPU: |
INTEL XEON E5-2680 V4 SR2N7 2.40GHZ Server Processor
INTEL SR2N7 E5-2680V4 2.40 GHz 35 MB SmartCache 120 W SKU 12162 |
$19.81 / Dec 23, 2024 $17.38 / Dec 30, 2024
|
 |
|

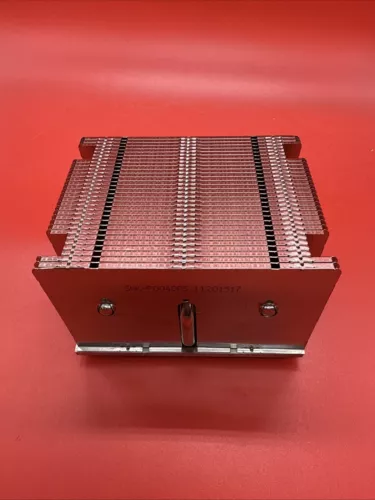

CPU Passive Cooling |
$12.06 / Dec 30, 2024 |
|
|
|
Motherboard |
Supermicro X10DRH-iT Dual LGA2011-3 Onboard 10GBe, 26xx v3/v4 CPU w/ I/O Shield |
$131.02 / Dec 31, 2024 |
|
|
HBA: |
LSI LENOVO 9240-8i 8-port SAS SATA ServerRAID Controller Card High Profile |
$19.81 / Nov 02, 2024 |
|
|
NIC |
SILICOM PE310G4SPI9L-XR-CX3 QUAD PORT 10GB SFP+ NETWORK ADAPTER |
$40.78 / Nov 09, 2024 |
|
|
~ (NIC Bracket) |
$4.35 / Nov 13, 2024 |
|
|
|
SSD (Ceph VM Data Pool): |

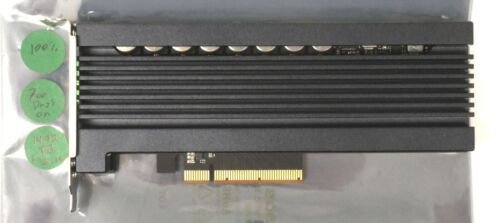

Oracle 7317693 3.2TB V-NAND F320 NVMe Samsung MZPLK3T2HCJL-000U4 PCIe3x8 |
$167.63 / Oct 26, 2024 |
|
|
~ (SSD Bracket) |

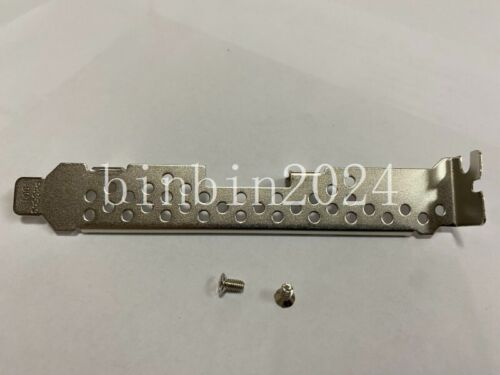

Low Profile Bracket for Samsung PM1725B PM1725A PM1735 983ZET |
$2.75 / Nov 26, 2024 |
|
| Backplane: |
Supermicro 2U 6Gbps SAS-2 / SATA Expander Backplane 12 bay 3.5" CSE-826 CSE-847 |
$71.57 / May 23, 2024 |
|
| Chassis: | CSE 826 (Doesn't have 2 x 2.5" SSD slots in the back like Avocado and Bamboo) |
$275 / Feb 12, 2022 (Included decommissioned Mobo+CPU+RAM) |
My first taste of Supermicro / Ewaste Old Enterprise Stuff.
|
| PSU: |
Lot of 2 Supermicro PWS-920P-SQ 920W 80PLUS Platinum Power Supply Super-Quiet |
$75.18 / Nov 09, 2023 |
|
Cosmos |
|||
|
NIC: |
Intel X520-DA2 Dual Port SFP PCIe Network Adapter Low Profile Dell P/N: 0942V6 |
$24.21/ Sep 21, 2023 |
|
|
Storage - SSD (Ceph VM Data Pool): |
$157.39 / Jun 20, 2024 |
|
|
| Chassis: | 2U 12 Bay TruNas SAS3 12gbps Server Intel Xeon 3.2Ghz Total 16 Core 64GB RAM HBA | $448.77 / Jan 04, 2025 |
|
Dragonfruit |
|||
| CPU |
AMD Ryzen 7 2700X Processor Wraith Prism LED Cooler - YD270XBGAFBOX |
$309.89 + Fees / October 27, 2018  |
|
| RAM |
Some old CL14 Samsung Bdie Kit I have laying around 3200MHZ non ECC. I think 16GB. |
|
|
| Motherboard | $79.21 / October 21, 2018 |
|
|
| NIC: |
Silicom PE310G4SPI9L-XR-CX3 4-Port 10GB SFP+ PCIe Server Adapter Card |
$38.52 / Oct 27, 2024 |
|
| Chassis: |
Rosewill 4U RSV-L4000U Rackmount Server Chassis | Carries up to 8 3.5" HDD | Inc |
$209.18 / Sep 04, 2024 |
Photo don't do justice to how beat to hell it was...
|
| Rails: |
iStarUSA TC-RAIL-26 26" Sliding Rail Kit for Most Rackmount Chassis |
$44.49 / Jul 22, 2024 |
|
Eggplant |
|||
|
HBA: |
2 x Supermicro AOC-S3008L-L8E SAS3 12Gbps 8-Port Internal PCI-e 3.0 HBA Controller |
$18.71 / Dec 20, 2024 |
|
|
HBA: |
LSI SAS9207-8e 8 Ports HBA SAS SATA Host Bus Adapter 6Gb/s High Profile 9207-8e |
$27.50 / Jun 05, 2024 |
|
|
Chassis |
Supermicro 4U 36 Bay TRUNAS Storage Server Xeon 28 Core 64GB 12GBs SQ PS Rail |
$527.38 / Dec 20, 2024 |
|
|
Storage (24 x 2.5" Flash Shelf) |
Netapp DS2246 Storage Expansion Array 24 Bay 2.5" SAS Trays 2x IOM6 Controllers |
$158.54 / May 21, 2024 (Now $89 ðŸ˜ðŸ¤£ - 02/26/2025) |
|
|
~ (Rails for the Flash Shelf) |
NetApp X5526A-R6 Universal Rackmount Rail Kit Bracket DS4243 DS4246 DS22xx Etc |
$50.65 / May 24, 2024 |
|
|
Storage (Backups Disk 1/4): |
Crucial - MX500 2TB Internal SSD SATA | $176.47 / May 29, 2024 | Bestbuy |
|
Storage (ZFS ZIL) |

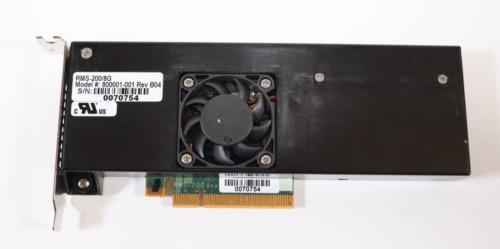

Radian RMS-200/8G PCIe x8 Gen3 NVRAM Accelerator Card 800001-001 |
$57.00 / Jun 16, 2024 |
|
Glicynia (Gaming) |
|||
|
CPU: |
AMD Ryzen 7 5800X3D Processor (4.5 GHz, 8 Cores, Socket AM4) Tray -... |
$337.07 / Aug 30, 2024 |
|
|
RAM: |
64-128GB ECC DDR4 3200MHZ | ||
|
GPU: |
7900 XTX | ||
|
PSU: |
CORSAIR - HX Series - HX1200 1200W 80 Plus Platinum Fully Modular ATX Power Supply - Black | $269.73 / Mar 11, 2022 | |
Wisteria (Workstation) |
|||
|
CPU: |
AMD - Ryzen 9 5950X 4th Gen 16-core, 32-threads | $546.67 / Dec 23, 2022 | Bestbuy |
|
RAM: |
64GB DDR4 (ECC) 3200MHZ NEMIX (2X32GB) PC4-25600 2Rx8 1.2V CL22 288-PIN ECC |
$402.60 / February 5, 2022 | Amazon |
|
GPU |
3080 TI | ||
|
GPU |
1080 TI | ||
|
PSU: |
CORSAIR - RMe Series RM750e 80 PLUS Gold Fully Modular Low-Noise ATX 3.0 and PCIE 5.0 Power Supply PSU - Black | $110.29 / Apr 16, 2023 | Bestbuy |
|
Keyboard (Main Wokstation Keyboard) |
Corsair K95 RGB PLATINUM Cherry MX Speed CH-9127014-NA Wired Keyboard |
$55.04 / Aug 11, 2024 |
|
|
Keyboard (USB Passthru to Glycenia) |
Corsair K95 RGB lights Platinum Mechanical Keyboard Cherry MX Brown Switch iCUE |
$88.07 / Aug 16, 2024 |
|
|
|
|||
WaterLily |
|||
|
|
|||
LeafBlower |
|||
|
|
|||
|
|
|||
Misc Lab |
|||
|
HBA Cables: |

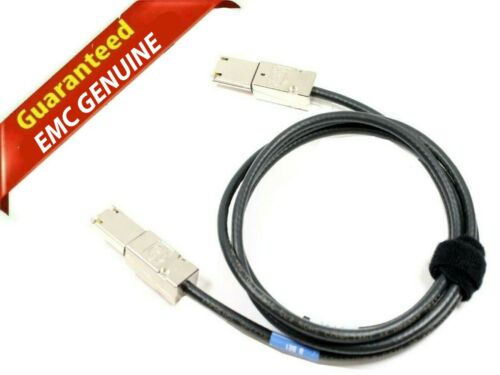

EMC Amphenol Mini-SAS SFF-8088 to SFF-8088 Molex 2 Meter Cable Black 038-003-787 |
$11.01 / May 23, 2024 |
|
|
|
2 Packs Internal Mini SAS Cable 36Pin SFF-8087 to SFF-8087 100Ohms 0.5 ~1 Meter |
$19.44 / May 23, 2024 |
|
|
|
External SAS Cable QSFP SFF-8436 to SFF-8088 SAS Cable For NetApp DS4243 DS4246 |
$30.71 / Jun 08, 2024 |
|
|
HBA Adapter |
Dual Ports Mini SAS SFF-8088 to SAS 36Pin SFF-8087 PCBA Adapter w/ PCI bracket |
$28.60 / May 23, 2024 |
|
|
JBOD Powerboard for CSEXXX |
$52.85 / May 23, 2024 |
|
|
|
Rails |
$75.13 / Aug 11, 2024 |
|
|
|
Brackets: |
$5.91 / Oct 27, 2024 |
|
|
|
|
Full height bracket for PM1725B PM1725A PM1735 983ZET PCIe SSD |
$6.61 / Nov 26, 2024 |
|
|
HDD/SSD Caddy |
SuperMicro SB16105 2.5" SAS/SATA Server Hard Drive Caddy/Trays |
$10.13 / Dec 23, 2024 |
|
|
|
$32.97 / Dec 30, 2024 |
|
